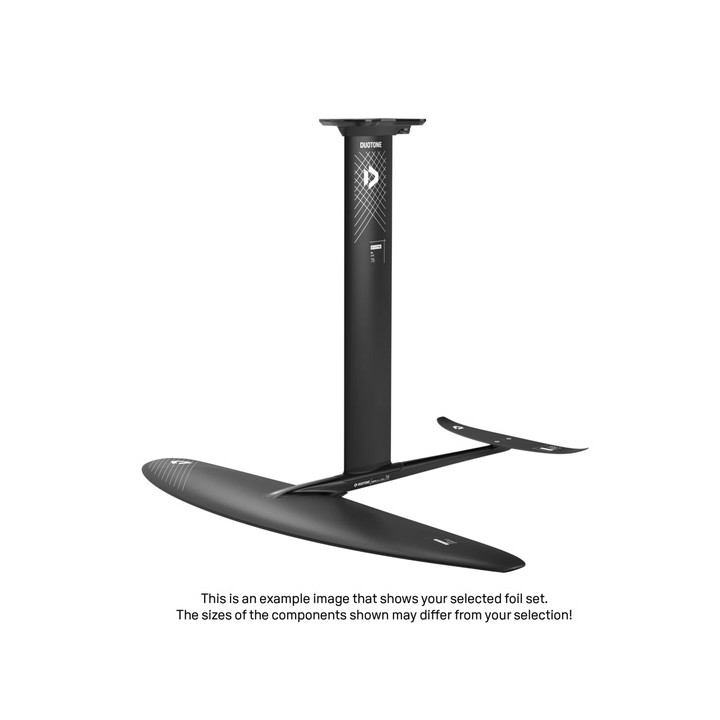

Duotone Complete Foil Lift 2400 with Quick Mount system

Entry setup with Quickmount convenience This configuration is designed for beginners and schools looking for maximum stability combined with simplified handling. The riding character remains stable and predictable, but the QM (Mono) mast adds a major practical advantage: fast, tool-free foil attachment and removal. Lift front wing – easy take-off and stable flight The Lift front wing is built around a high-lift profile and very low stall speed, helping riders get on foil earlier and stay flying even when speed drops. Its large surface area and forgiving behavior create a calm and confidence-inspiring ride. Although beginner-focused, the Lift still delivers solid glide and usable turning performance, supporting continued progression beyond the first sessions. Stabilizer C (OG) – proven pitch control The Stabilizer C (OG) follows a classic medium aspect design with a flat center section and subtle winglets. Its main role is to stabilize pitch and keep the foil tracking consistently, which is especially important during the learning phase. Thin shims allow small angle-of-attack adjustments to fine-tune the setup to rider preference or conditions. Mast AL 3BS QM (Mono) – tool-free mounting The key difference in this set is the AL 3BS QM mast featuring the Quickmount one-screw system. It allows you to attach or detach the foil without tools, while leaving the base plate in your preferred position on the board. The Mono Claw design ensures the same force transmission as a standard aluminum plate, maintaining stiffness and performance. The AL 3BS+ connection maximizes compatibility within the Duotone foil system, and Helicoil threads enhance long-term durability. Fuselage Aero AL 3BS – reduced drag and strength The aluminum Aero AL 3BS fuselage features a reduced cross-section to lower drag while increasing structural strength. Cut-outs near the front wing mount minimize weight, and the recessed stabilizer interface improves hydrodynamics. Together, these components create a stable, durable and easy-to-use entry foil system with added mounting convenience.

Front wing area (cm²)	2400
Front wing span (cm)	111
Front wing aspect ratio	5.1
Wing material	Carbon Composite
Rear wing area (cm²)	300
Rear Wing Construction	Rear Wing Only
Mast length (cm)	75
Mast material	Aluminium
Mast thickness (mm)	18.2
Fuselage length (cm)	74
Fuselage material	Aluminium
Discipline	Freeride
Foil mount	Foil plate + Quickmount
Name	Duotone Complete Foil Lift 2400 with Quick Mount system
